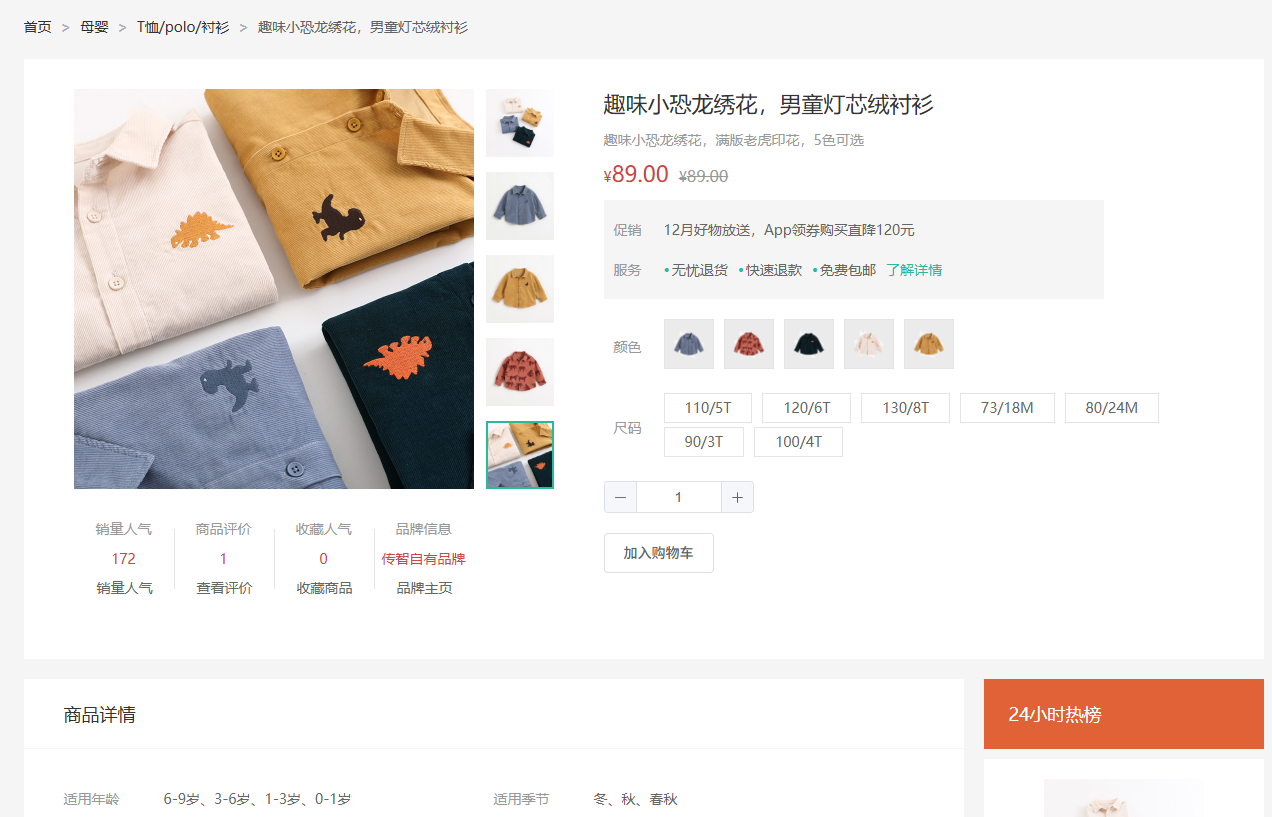

详情页需要进行商品展示、规格选择、加入购物车等多种功能的展示。在View/Detail文件夹下新建index.vue
和components文件夹。index.vue的代码如下

用到的接口
在apis文件夹下新建details.js
,需要用到的接口为
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
| import request from "@/utils/http"
export const getDetail = (id) => { return request({ url: '/goods', params: { id } }) }
export const getHotGoodsAPI = ({ id, type, limit = 3 }) => { return request({ url: '/goods/hot', params: { id, type, limit } }) }
|
组件概览
面包屑组件
面包屑组件以前已经写过,这里不再说明其具体写法
1 2 3 4 5 6 7 8
| <div class="bread-container"> <el-breadcrumb separator=">"> <el-breadcrumb-item :to="{ path: '/' }">首页</el-breadcrumb-item> <el-breadcrumb-item :to="{ path: `/category/${goods.categories[1].id}` }">{{ goods.categories[1].name }}</el-breadcrumb-item> <el-breadcrumb-item :to="{ path: `/category/sub/${goods.categories[0].id}` }">{{ goods.categories[0].name }}</el-breadcrumb-item> <el-breadcrumb-item>{{ goods.name }}</el-breadcrumb-item> </el-breadcrumb> </div>
|
但在实际运行中会发现其报错。原因是goods
一开始的初始值是一个空对象
在goods获取数据前就开始渲染了,因此后面的数据都变成了undefined
类型。要想解决该问题,有两种方法
商品概览
预览图片
该部分中的图片预览区组件需要实现放大和获取图片列表的功能。在src/components文件夹下新建index.js
文件(用于全局注册)和ImageView文件夹,这个文件夹下新建index.vue
,代码如下

defineProps
是做过的传参,这里不再赘述。
middle
部分为左侧的预览图。从图片数组内挑选符合条件的图片。同时准备好蒙版组件,蒙版的位置由js部分决定,当鼠标在预览图内时才渲染。
1 2 3 4
| <div class="middle" ref="target"> <img :src="imageList[activeIndex]" alt="" /> <div class="layer" v-show="!isOutside" :style="{ left: `${left}px`, top: `${top}px` }"></div> </div>
|

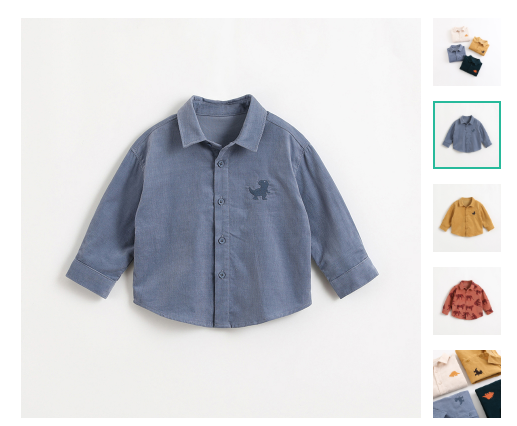

条件控制在右侧的小图中。当鼠标进入某张图片的范围时将activeIndex
转换为自己所在的索引,同时改变类名,显示高亮。
1 2 3 4 5
| <ul class="small"> <li v-for="(img, i) in imageList" :key="i" @mouseenter="enterHandler(i)" :class="{ active: i === activeIndex }"> <img :src="img" alt="" /> </li> </ul>
|
1
| const enterHandler = (i) => { activeIndex.value = i }
|

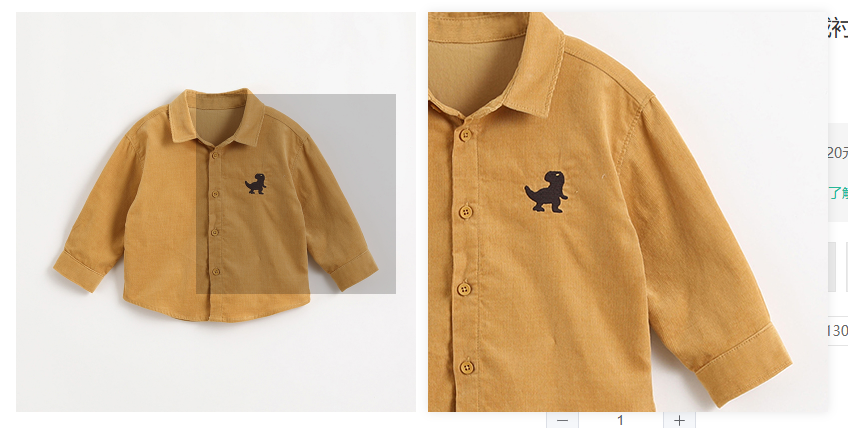

当鼠标在预览图中时,大图开始显示,大图显示的位置由js部分决定。

1 2 3 4 5
| <div class="large" :style="[{ backgroundImage: `url(${imageList[activeIndex]})`, backgroundPositionX: `${positionX}px`, backgroundPositionY: `${positionY}px`, },]" v-show="!isOutside"></div>
|
js部分如下
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
| const target = ref(null) const { elementX, elementY, isOutside } = useMouseInElement(target)
const left = ref(0), top = ref(0), positionX = ref(0), positionY = ref(0) watch([elementX, elementY, isOutside], () => { if (isOutside.value) return if (elementX.value > 100 && elementX.value < 300) { left.value = elementX.value - 100 } if (elementY.value > 100 && elementY.value < 300) { top.value = elementY.value - 100 } if (elementX.value > 300) { left.value = 200 } if (elementX.value < 100) { left.value = 0 } if (elementY.value > 300) { top.value = 200 } if (elementY.value < 100) { top.value = 0 } positionX.value = -left.value * 2 positionY.value = -top.value * 2 })
|
target
传入一个组件(这里是middle
),watch
方法用于监听传入3个值的变化。变化时回调函数会被触发(但前两个一直在变,就相当于一直在触发了)。当鼠标在预览图中时,蒙版和大图的位置开始变化。
组件统一注册
index.js
下的代码为
1 2 3 4 5 6 7 8 9
| import ImageView from './ImageView/index.vue' import Sku from './XtxSku/index.vue' export const componentPlugin = { install(app) { app.component('ImaView', ImageView) app.component('XtxSku', Sku) } }
|
该部分注册了文件夹下的所有组件,只需要在main,js
文件下注册
1
| app.use(componentPlugin)
|
即可,减少了main.js
部分的代码量。
统计信息
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
| <ul class="goods-sales"> <li> <p>销量人气</p> <p> {{ goods.salesCount }} </p> <p><i class="iconfont icon-task-filling"></i>销量人气</p> </li> <li> <p>商品评价</p> <p> {{ goods.commentCount }} </p> <p><i class="iconfont icon-comment-filling"></i>查看评价</p> </li> <li> <p>收藏人气</p> <p> {{ goods.collectCount }} </p> <p><i class="iconfont icon-favorite-filling"></i>收藏商品</p> </li> <li> <p>品牌信息</p> <p> {{ goods.brand.name }} </p> <p><i class="iconfont icon-dynamic-filling"></i>品牌主页</p> </li> </ul>
|
商品信息
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
| <p class="g-name"> {{ goods.name }} </p> <p class="g-desc"> {{ goods.desc }} </p> <p class="g-price"> <span> {{ goods.oldPrice }}</span> <span> {{ goods.price }} </span> </p> <div class="g-service"> <dl> <dt>促销</dt> <dd>12月好物放送,App领券购买直降120元</dd> </dl> <dl> <dt>服务</dt> <dd> <span>无忧退货</span> <span>快速退款</span> <span>免费包邮</span> <a href="javascript:;">了解详情</a> </dd> </dl> </div>
|
oldPrice
部分应该加个v-if
以更符合现实情况。
sku组件
这部分在课程中作为选修部分,没有多讲。点击查看源码
热榜组件
侧栏显示热榜之类的牛皮藓是很多网站惯用的功能。此处能显示24小时热榜和周热榜
1 2 3 4 5 6 7
| <div class="goods-aside"> <DetailHot :hotType="1" /> <DetailHot :hotType="2" /> </div>
|
其中的<Detail />
为components文件夹下的DetailHot.vue
组件,源码如下
完整代码
页面源码
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395
| <script setup> import { getDetail } from '@/apis/detail' import { onMounted, ref } from 'vue' import { useRoute } from 'vue-router' import DetailHot from './components/DetailHot.vue' import { ElMessage } from 'element-plus' import { useCartStore } from "@/stores/cartStore"
const cartStore = useCartStore() const goods = ref({}) const route = useRoute() const getGoods = async () => { const res = await getDetail(route.params.id) goods.value = res.result }
onMounted(() => getGoods())
let skuObj = {} const skuChange = (sku) => { skuObj = sku }
const count = ref(1) const countChange = (count) => { }
const addCart = () => { if (skuObj.skuId) { cartStore.addCart({ id: goods.value.id, name: goods.value.name, picture: goods.value.mainPictures[0], price: goods.value.price, count: count.value, skuId: skuObj.skuId, attrsText: skuObj.specsText, selected: true }) } else { ElMessage.warning('请选择规格') } } </script>
<template> <div class="xtx-goods-page"> <div class="container" v-if="goods.details"> <div class="bread-container"> <el-breadcrumb separator=">"> <el-breadcrumb-item :to="{ path: '/' }">首页</el-breadcrumb-item> <el-breadcrumb-item :to="{ path: `/category/${goods.categories[1].id}` }">{{ goods.categories[1].name }}</el-breadcrumb-item> <el-breadcrumb-item :to="{ path: `/category/sub/${goods.categories[0].id}` }">{{ goods.categories[0].name }}</el-breadcrumb-item> <el-breadcrumb-item>{{ goods.name }}</el-breadcrumb-item> </el-breadcrumb> </div> <div class="info-container"> <div class="goods-info"> <div class="media"> <ImageView :image-list="goods.mainPictures" /> <ul class="goods-sales"> <li> <p>销量人气</p> <p> {{ goods.salesCount }} </p> <p><i class="iconfont icon-task-filling"></i>销量人气</p> </li> <li> <p>商品评价</p> <p> {{ goods.commentCount }} </p> <p><i class="iconfont icon-comment-filling"></i>查看评价</p> </li> <li> <p>收藏人气</p> <p> {{ goods.collectCount }} </p> <p><i class="iconfont icon-favorite-filling"></i>收藏商品</p> </li> <li> <p>品牌信息</p> <p> {{ goods.brand.name }} </p> <p><i class="iconfont icon-dynamic-filling"></i>品牌主页</p> </li> </ul> </div> <div class="spec"> <p class="g-name"> {{ goods.name }} </p> <p class="g-desc"> {{ goods.desc }} </p> <p class="g-price"> <span> {{ goods.oldPrice }}</span> <span> {{ goods.price }} </span> </p> <div class="g-service"> <dl> <dt>促销</dt> <dd>12月好物放送,App领券购买直降120元</dd> </dl> <dl> <dt>服务</dt> <dd> <span>无忧退货</span> <span>快速退款</span> <span>免费包邮</span> <a href="javascript:;">了解详情</a> </dd> </dl> </div> <XtxSku :goods="goods" @change="skuChange" /> <el-input-number v-model="count" @change="countChange" /> <div> <el-button size="large" class="btn" @click="addCart"> 加入购物车 </el-button> </div> </div> </div> </div>
<div class="goods-footer"> <div class="goods-article"> <div class="goods-tabs"> <nav> <a>商品详情</a> </nav> <div class="goods-detail"> <ul class="attrs"> <li v-for="item in goods.details.properties" :key="item.value"> <span class="dt">{{ item.name }}</span> <span class="dd">{{ item.value }} </span> </li> </ul> <img v-for="img in goods.details.pictures" :src="img" :key="img" alt=""> </div> </div> </div> <div class="goods-aside"> <DetailHot :hotType="1" /> <DetailHot :hotType="2" /> </div> </div> </div> </div> </template>
<style scoped lang='scss'> .xtx-goods-page { .goods-info { min-height: 600px; background: #fff; display: flex;
.media { width: 580px; height: 600px; padding: 30px 50px; }
.spec { flex: 1; padding: 30px 30px 30px 0; } }
.goods-footer { display: flex; margin-top: 20px;
.goods-article { width: 940px; margin-right: 20px; }
.goods-aside { width: 280px; min-height: 1000px; } }
.goods-tabs { min-height: 600px; background: #fff; }
.goods-warn { min-height: 600px; background: #fff; margin-top: 20px; }
.number-box { display: flex; align-items: center;
.label { width: 60px; color: #999; padding-left: 10px; } }
.g-name { font-size: 22px; }
.g-desc { color: #999; margin-top: 10px; }
.g-price { margin-top: 10px;
span { &::before { content: "¥"; font-size: 14px; }
&:first-child { color: $priceColor; margin-right: 10px; font-size: 22px; }
&:last-child { color: #999; text-decoration: line-through; font-size: 16px; } } }
.g-service { background: #f5f5f5; width: 500px; padding: 20px 10px 0 10px; margin-top: 10px;
dl { padding-bottom: 20px; display: flex; align-items: center;
dt { width: 50px; color: #999; }
dd { color: #666;
&:last-child { span { margin-right: 10px;
&::before { content: "•"; color: $xtxColor; margin-right: 2px; } }
a { color: $xtxColor; } } } } }
.goods-sales { display: flex; width: 400px; align-items: center; text-align: center; height: 140px;
li { flex: 1; position: relative;
~li::after { position: absolute; top: 10px; left: 0; height: 60px; border-left: 1px solid #e4e4e4; content: ""; }
p { &:first-child { color: #999; }
&:nth-child(2) { color: $priceColor; margin-top: 10px; }
&:last-child { color: #666; margin-top: 10px;
i { color: $xtxColor; font-size: 14px; margin-right: 2px; }
&:hover { color: $xtxColor; cursor: pointer; } } } } } }
.goods-tabs { min-height: 600px; background: #fff;
nav { height: 70px; line-height: 70px; display: flex; border-bottom: 1px solid #f5f5f5;
a { padding: 0 40px; font-size: 18px; position: relative;
>span { color: $priceColor; font-size: 16px; margin-left: 10px; } } } }
.goods-detail { padding: 40px;
.attrs { display: flex; flex-wrap: wrap; margin-bottom: 30px;
li { display: flex; margin-bottom: 10px; width: 50%;
.dt { width: 100px; color: #999; }
.dd { flex: 1; color: #666; } } }
>img { width: 100%; } }
.btn { margin-top: 20px;
}
.bread-container { padding: 25px 0; } </style>
|
图片组件
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118
| <script setup> import { useMouseInElement } from '@vueuse/core' import { ref, watch } from 'vue'
defineProps({ imageList: { type: Array, default: () => [] } })
const activeIndex = ref(0)
const enterHandler = (i) => { activeIndex.value = i }
const target = ref(null) const { elementX, elementY, isOutside } = useMouseInElement(target)
const left = ref(0), top = ref(0), positionX = ref(0), positionY = ref(0) watch([elementX, elementY, isOutside], () => { if (isOutside.value) return if (elementX.value > 100 && elementX.value < 300) { left.value = elementX.value - 100 } if (elementY.value > 100 && elementY.value < 300) { top.value = elementY.value - 100 } if (elementX.value > 300) { left.value = 200 } if (elementX.value < 100) { left.value = 0 } if (elementY.value > 300) { top.value = 200 } if (elementY.value < 100) { top.value = 0 } positionX.value = -left.value * 2 positionY.value = -top.value * 2 }) </script>
<template> <div class="goods-image"> <div class="middle" ref="target"> <img :src="imageList[activeIndex]" alt="" />
<div class="layer" v-show="!isOutside" :style="{ left: `${left}px`, top: `${top}px` }"></div> </div> <ul class="small"> <li v-for="(img, i) in imageList" :key="i" @mouseenter="enterHandler(i)" :class="{ active: i === activeIndex }"> <img :src="img" alt="" /> </li> </ul>
<div class="large" :style="[{ backgroundImage: `url(${imageList[activeIndex]})`, backgroundPositionX: `${positionX}px`, backgroundPositionY: `${positionY}px`, },]" v-show="!isOutside"></div> </div> </template>
<style scoped lang="scss"> .goods-image { width: 480px; height: 400px; position: relative; display: flex;
.middle { width: 400px; height: 400px; background: #f5f5f5; }
.large { position: absolute; top: 0; left: 412px; width: 400px; height: 400px; z-index: 500; box-shadow: 0 0 10px rgba(0, 0, 0, 0.1); background-repeat: no-repeat; // 背景图:盒子的大小 = 2:1 将来控制背景图的移动来实现放大的效果查看 background-position background-size: 800px 800px; background-color: #f8f8f8; }
.layer { width: 200px; height: 200px; background: rgba(0, 0, 0, 0.2); // 绝对定位 然后跟随咱们鼠标控制left和top属性就可以让滑块移动起来 left: 0; top: 0; position: absolute; }
.small { width: 80px;
li { width: 68px; height: 68px; margin-left: 12px; margin-bottom: 15px; cursor: pointer;
&:hover, &.active { border: 2px solid $xtxColor; } } } } </style>
|
Sku组件
vue部分
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201
| <template> <div class="goods-sku"> <dl v-for="item in goods.specs" :key="item.id"> <dt>{{ item.name }}</dt> <dd> <template v-for="val in item.values" :key="val.name"> <img :class="{ selected: val.selected, disabled: val.disabled }" @click="clickSpecs(item, val)" v-if="val.picture" :src="val.picture" /> <span :class="{ selected: val.selected, disabled: val.disabled }" @click="clickSpecs(item, val)" v-else>{{ val.name }}</span> </template> </dd> </dl> </div> </template> <script> import { watchEffect } from 'vue' import getPowerSet from './power-set' const spliter = '★'
const getPathMap = (skus) => { const pathMap = {} if (skus && skus.length > 0) { skus.forEach(sku => { if (sku.inventory) { const specs = sku.specs.map(spec => spec.valueName) const powerSet = getPowerSet(specs) powerSet.forEach(set => { const key = set.join(spliter) if (!pathMap[key]) { pathMap[key] = [] } pathMap[key].push(sku.id) }) } }) } return pathMap }
function initDisabledStatus (specs, pathMap) { if (specs && specs.length > 0) { specs.forEach(spec => { spec.values.forEach(val => { val.disabled = !pathMap[val.name] }) }) } }
const getSelectedArr = (specs) => { const selectedArr = [] specs.forEach((spec, index) => { const selectedVal = spec.values.find(val => val.selected) if (selectedVal) { selectedArr[index] = selectedVal.name } else { selectedArr[index] = undefined } }) return selectedArr }
const updateDisabledStatus = (specs, pathMap) => { specs.forEach((item, i) => { const selectedArr = getSelectedArr(specs) item.values.forEach(val => { if (!val.selected) { selectedArr[i] = val.name const key = selectedArr.filter(value => value).join(spliter) val.disabled = !pathMap[key] } }) }) }
export default { name: 'XtxGoodSku', props: { goods: { type: Object, default: () => ({ specs: [], skus: [] }) } }, emits: ['change'], setup (props, { emit }) { let pathMap = {} watchEffect(() => { pathMap = getPathMap(props.goods.skus) initDisabledStatus(props.goods.specs, pathMap) })
const clickSpecs = (item, val) => { if (val.disabled) return false if (val.selected) { val.selected = false } else { item.values.forEach(bv => { bv.selected = false }) val.selected = true } updateDisabledStatus(props.goods.specs, pathMap) const selectedArr = getSelectedArr(props.goods.specs).filter(value => value) if (selectedArr.length === props.goods.specs.length) { const skuId = pathMap[selectedArr.join(spliter)][0] const sku = props.goods.skus.find(sku => sku.id === skuId) emit('change', { skuId: sku.id, price: sku.price, oldPrice: sku.oldPrice, inventory: sku.inventory, specsText: sku.specs.reduce((p, n) => `${p} ${n.name}:${n.valueName}`, '').trim() }) } else { emit('change', {}) } } return { clickSpecs } } } </script>
<style scoped lang="scss"> @mixin sku-state-mixin { border: 1px solid #e4e4e4; margin-right: 10px; cursor: pointer;
&.selected { border-color: $xtxColor; }
&.disabled { opacity: 0.6; border-style: dashed; cursor: not-allowed; } }
.goods-sku { padding-left: 10px; padding-top: 20px;
dl { display: flex; padding-bottom: 20px; align-items: center;
dt { width: 50px; color: #999; }
dd { flex: 1; color: #666;
>img { width: 50px; height: 50px; margin-bottom: 4px; @include sku-state-mixin; }
>span { display: inline-block; height: 30px; line-height: 28px; padding: 0 20px; margin-bottom: 4px; @include sku-state-mixin; } } } } </style>
|
js部分
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
| export default function bwPowerSet (originalSet) { const subSets = [] const numberOfCombinations = 2 ** originalSet.length for (let combinationIndex = 0; combinationIndex < numberOfCombinations; combinationIndex += 1) { const subSet = [] for (let setElementIndex = 0; setElementIndex < originalSet.length; setElementIndex += 1) { if (combinationIndex & (1 << setElementIndex)) { subSet.push(originalSet[setElementIndex]) } } subSets.push(subSet) } return subSets }
|
热榜
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86
| <script setup> import { getHotGoodsAPI } from '@/apis/detail' import { computed, onMounted, ref } from 'vue'; import { useRoute } from 'vue-router';
const props = defineProps({ hotType: { type: Number } })
const TYPEMAP = { 1: '24小时热榜', 2: '周热榜' }
const title = computed(() => TYPEMAP[props.hotType])
const hotList = ref([]) const route = useRoute() const getHotList = async () => { const res = await getHotGoodsAPI({ id: route.params.id, type: props.hotType }) hotList.value = res.result }
onMounted(() => getHotList()) </script> <template> <div class="goods-hot"> <h3>{{ title }}</h3> <router-link to="/" class="goods-item" v-for="item in hotList" :key="item.id"> <img :src="item.picture" alt="" /> <p class="name ellipsis">{{ item.name }}</p> <p class="desc ellipsis">{{ item.desc }}</p> <p class="price">¥{{ item.price }}</p> </router-link> </div> </template>
<style scoped lang="scss"> .goods-hot { h3 { height: 70px; background: $helpColor; color: #fff; font-size: 18px; line-height: 70px; padding-left: 25px; margin-bottom: 10px; font-weight: normal; }
.goods-item { display: block; padding: 20px 30px; text-align: center; background: #fff;
img { width: 160px; height: 160px; }
p { padding-top: 10px; }
.name { font-size: 16px; }
.desc { color: #999; height: 29px; }
.price { color: $priceColor; font-size: 20px; } } } </style>
|
